Session Screencast

Records browser sessions as .webm videos. Videos are displayed in the DevTools UI alongside the snapshot and DOM mutation views.

Available across all three adapters - WebdriverIO, Selenium WebDriver, and Nightwatch.js. The capture mode differs per framework (CDP push where possible, polling otherwise - see Browser Support below).

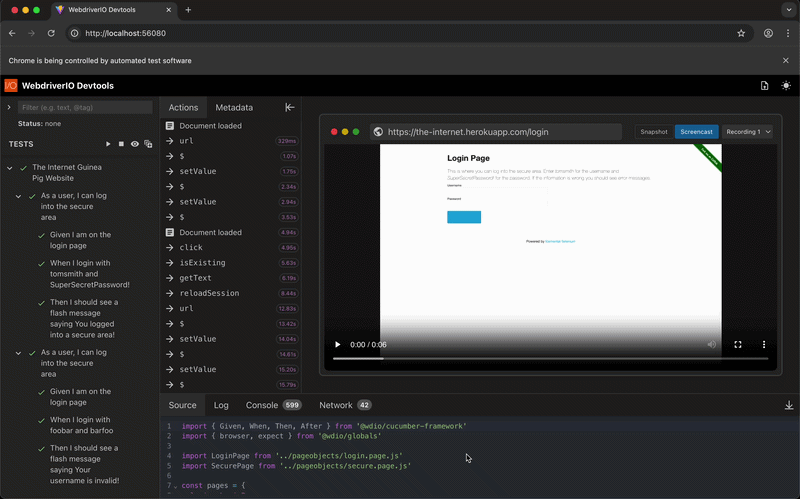

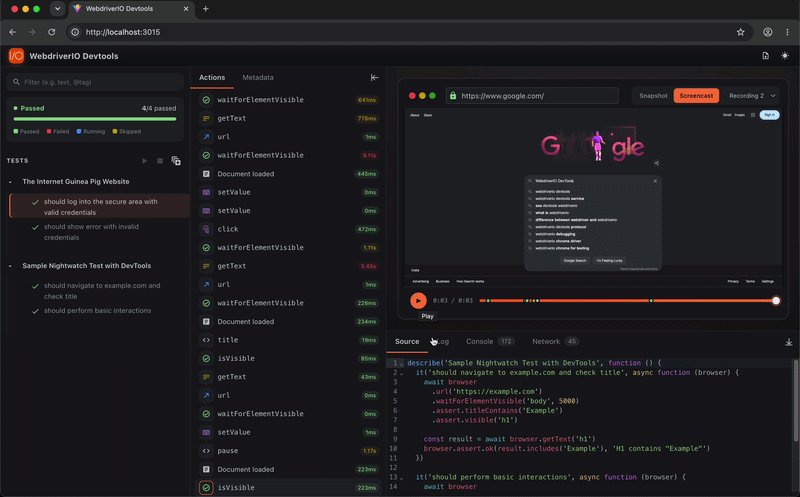

Demo

Setup

Screencast encoding requires ffmpeg on PATH and the fluent-ffmpeg package:

# Install ffmpeg - https://ffmpeg.org/download.html
brew install ffmpeg        # macOS
sudo apt install ffmpeg    # Ubuntu/Debian

# Install fluent-ffmpeg
npm install fluent-ffmpeg

Configuration

services: [
  [
    'devtools',
    {
      screencast: {
        enabled: true,
        captureFormat: 'jpeg',
        quality: 70,
        maxWidth: 1280,
        maxHeight: 720,
      }
    }
  ]
]

Options

Option	Type	Default	Description
enabled	boolean	false	Enable session recording
captureFormat	'jpeg' | 'png'	'jpeg'	Frame image format. Chrome/Chromium only - controls the format Chrome sends over CDP. Ignored in polling mode (Firefox, Safari) where screenshots are always PNG. Does not affect the output video container, which is always .webm
quality	number	70	JPEG compression quality 0-100. Only applies in Chrome/Chromium CDP mode with captureFormat: 'jpeg'
maxWidth	number	1280	Maximum frame width in pixels. Chrome/Chromium only - Chrome scales frames before sending over CDP. Ignored in polling mode
maxHeight	number	720	Maximum frame height in pixels. Chrome/Chromium only - same as above
pollIntervalMs	number	200	Screenshot interval in milliseconds for non-Chrome browsers (polling mode). Lower = smoother video but more WebDriver round-trips during test execution

Browser Support

Recording works across all major browsers using automatic mode selection:

Browser	Mode	Notes
Chrome / Chromium / Edge	CDP push	Chrome pushes frames over the DevTools Protocol. Efficient - no impact on test command timing
Firefox / Safari / others	BiDi polling	Falls back to calling browser.takeScreenshot() at pollIntervalMs intervals. Works wherever WebDriver screenshots are supported; adds a small overhead proportional to the interval

No configuration change is needed to switch modes - the service detects browser capabilities automatically and logs which mode is active.

Behaviour

• Recording starts when the browser session opens and stops when it closes.
• Leading blank frames (captured before the first URL navigation) are automatically trimmed so videos begin at the first meaningful page action.
• If browser.reloadSession() is called mid-run, the service finalises the current recording and starts a fresh one for the new session. Each session produces its own .webm file.
• When multiple recordings exist, the DevTools UI shows a Recording N dropdown to switch between them.

Where output files land

The directory each adapter picks is slightly different - they all share the same resolver in @wdio/devtools-core but feed it different inputs:

Adapter	Output location
WebdriverIO	outputDir if explicitly set in wdio.conf.ts, otherwise rootDir (the dir containing the config). Avoid setting outputDir just to control video paths - WDIO redirects worker logs there too.
Selenium	Directory of the test file that just ran, falling back to process.cwd().
Nightwatch	Directory of the test file, falling back to the directory containing nightwatch.conf.*, then process.cwd().

Directories under node_modules/ are skipped on the Selenium/Nightwatch path so symlinked workspaces don't dump videos into a dependency folder.

Output Files

Live mode streams captured data to the dashboard over WebSocket and writes no trace file to disk — for a portable artifact, use trace mode (trace.zip). The only file live mode writes is the screencast video, and only when screencast.enabled: true. Filenames are adapter-specific (the framework name appears in the prefix):

Adapter	Screencast video
WebdriverIO	wdio-video-{sessionId}.webm
Selenium	selenium-video-{sessionId}.webm
Nightwatch	nightwatch-video-{sessionId}.webm
